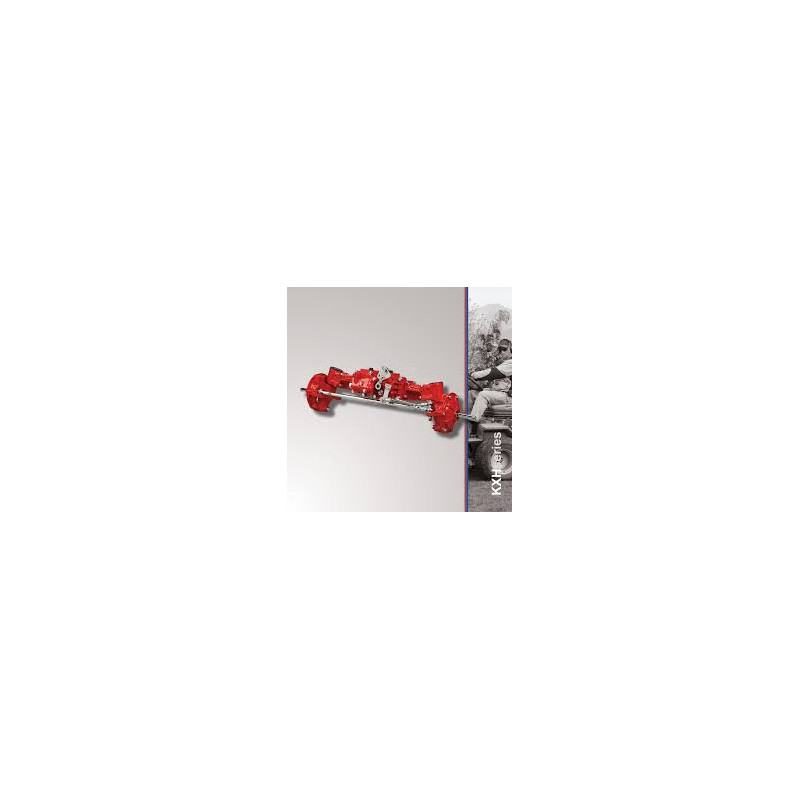

Pont Avant 4x4 Tuff-Torq Référence KXH10N 000024

Specification	Value	Units
Application	4WD Lawn Tractor 4WD Garden Tractor
Engine Horsepower	18-22	HP
Rear Tire Size	584 - 610 (23 - 24)	mm (in)
Front Tires Size	406 (16)	mm (in)
Recommended Rear Axle	K664
Displacement (Pump/Motor)	10/10	cc/rev
KXH Motor Displacement	10 Fixed + 10 Variable	cc/rev
Rated Axle Torque	240 (177)	Nm (ft-lb)
Max. Oil Flow Rate	37	L/min
Gear Reduction Ratio	14.42
Max. Static Weight on Axle	250 (551)	kg (lb)
Axle Shaft Size	19 (3/4)	mm (in)
Weight (dry)	18 (39.7)	kg (lb)
Oil Capacity	2.3 (2.43)	L (quarts)
Oil	SAE 10W30 class CD or 5W50
